Pellnano
Hot water
Heating

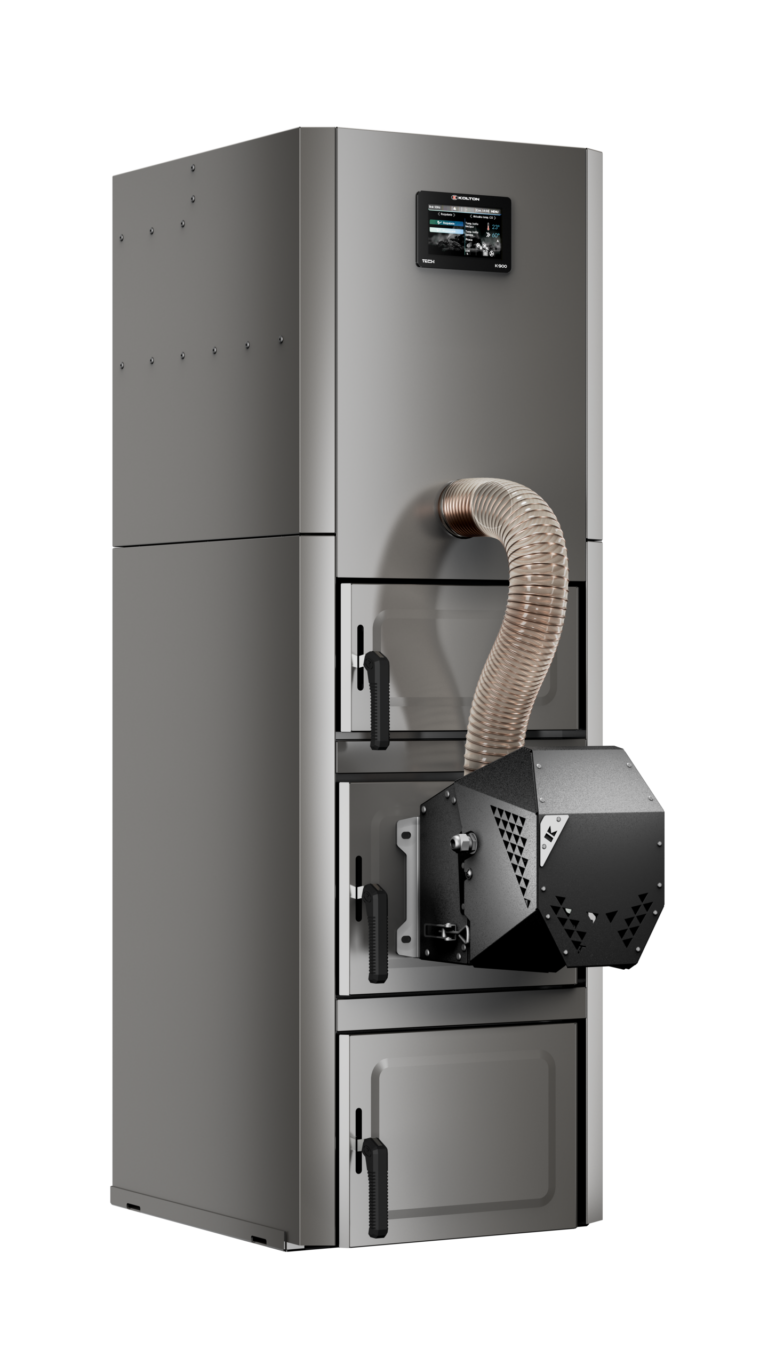

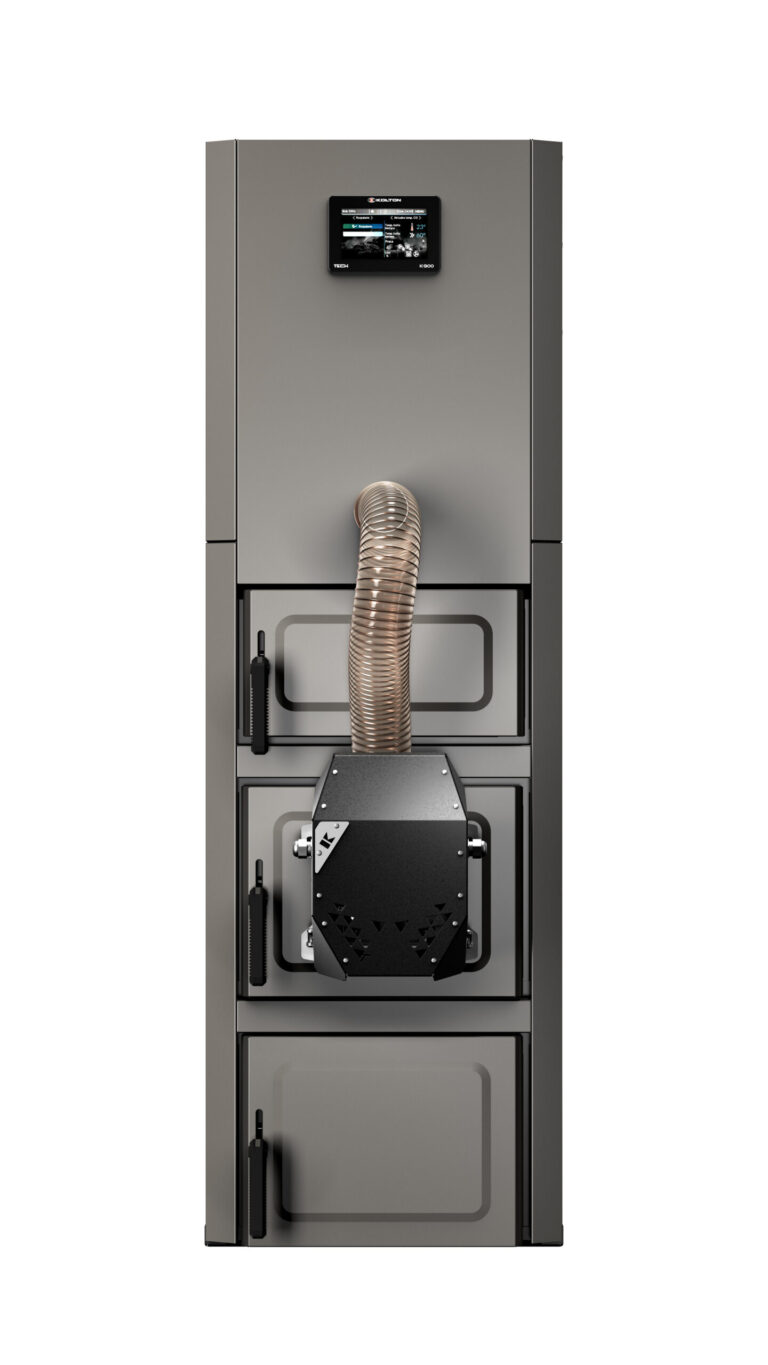

The Pellnano boiler, with outputs from 8 to 12 kW, is a heating boiler designed for supplying central heating systems in small buildings and for domestic hot water preparation. The boiler is adapted for burning wood pellets. Pellnano is equipped with a self-cleaning Harnaś pellet burner manufactured by KOŁTON, featuring an igniter and flame sensor, which allows automatic operation and ensures minimal maintenance.
The boiler has a compact and robust design with a top-mounted pellet hopper. An important advantage is the boiler body, made of 6 mm thick steel with horizontal shelves, making the heat exchanger easy to clean. The boiler is equipped with a simple, intuitive K692 controller. The automation controls the central heating pump, domestic hot water pump, circulation pump, heating circuit pump, mixing valve, additional contact, and fuel ignition system. This ensures minimal manual operation while allowing integration with advanced heating installations.
The controller can be upgraded to a more advanced version, such as K702 or K902.
Equipment
Standard
- Advanced, intuitive K692 controller
- Additional igniter
- Automatic pellet burner with igniter
Optional
- K702 or K902 controller
Features
Automatic ignition and shutdown
Simple burner cleaning system
Compact and sturdy boiler design
Technical data
8 10 12Pellnano

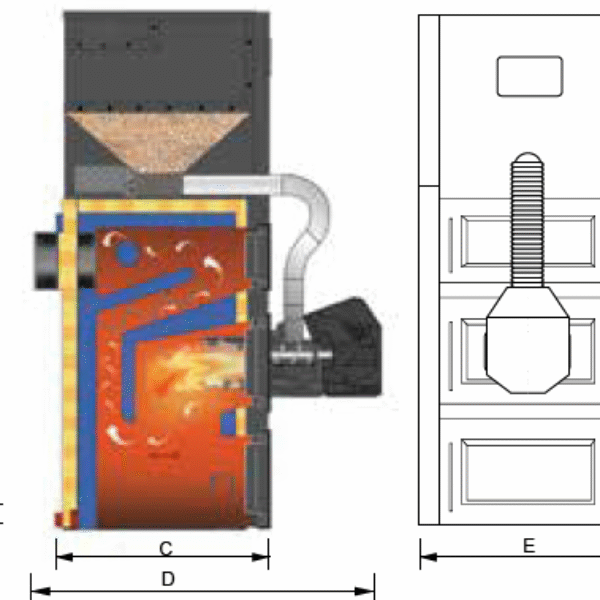

A – Flue diameter
B – Height from bottom to bottom of flue
C – Body length
D – Overall length
E – Width
F – Width with hopper
G – Height
I – Supply connection
J – Return connection
Dimensions
8 10 12Pellnano
Inquiry sent!
We will contact you as soon as possible.
Boiler disposal after end of service life
After its service life, the boiler should be taken to the appropriate recycling centers due to the variety of materials it is made from. During boiler dismantling, all necessary safety and precautionary measures must be observed.
