BK buffer tank (buffer/hydraulic separator)

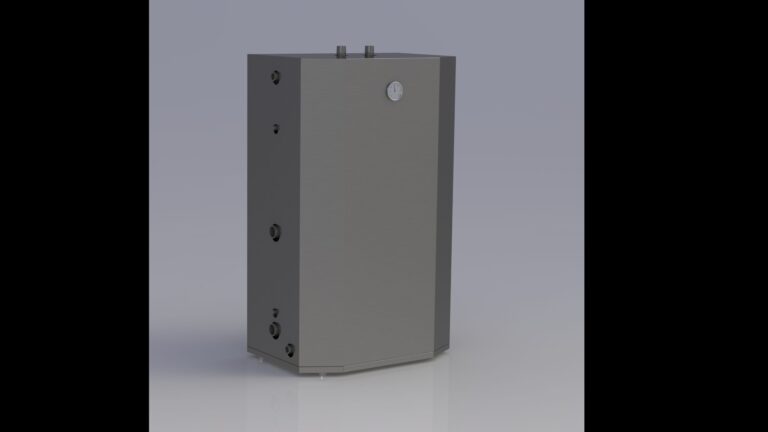

The Kołton BK 200 buffer is a professional solution specifically designed to work with heat pumps, offering the possibility of connecting pumping groups directly to the buffer. This device is dedicated to cooperation with Kołton AirKompakt series heat pumps with capacities of 7, 9, and 11 kW, as well as AirAdapt 8, 12, 15, and 20 kW, making it highly versatile and suitable for various heating system requirements.

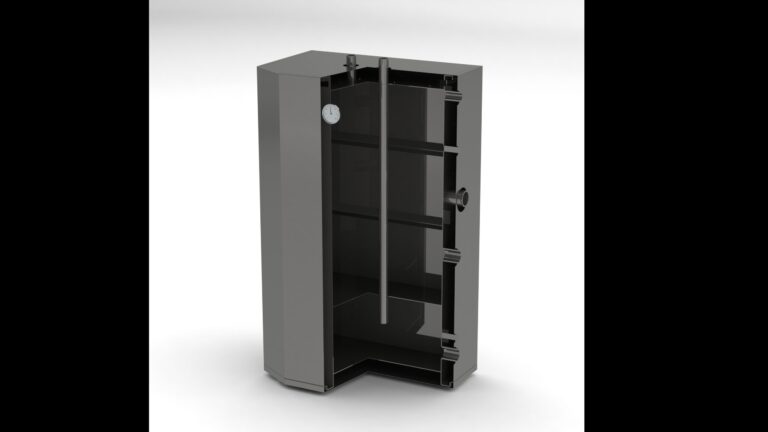

The buffer’s construction features a perforated plate and thermal insulation, which enhances operational efficiency and minimizes heat loss. Its body is made of 2.5 mm thick steel sheet, ensuring durability and resistance to working pressure while providing safe operation.
The connection of heat sources and heat emitters should be carried out in accordance with the manufacturer’s recommendations and the technical diagrams included in the technical and operational documentation (DTR) dedicated to each heating device, to ensure optimal performance and extended service life of the system.
Operating conditions
The Kołton BK 200 buffer is designed for wall-mounted installation thanks to its sturdy brackets, saving space in the boiler room and giving it a compact character. In addition, the buffer can function as a hydraulic separator in heating systems with a pellet boiler, ensuring stable operation of the entire heating system.
The Kołton BK 200 buffer is an ideal solution for boiler rooms with limited space, efficiently integrating the operation of heat pumps and other heat sources in a compact manner.

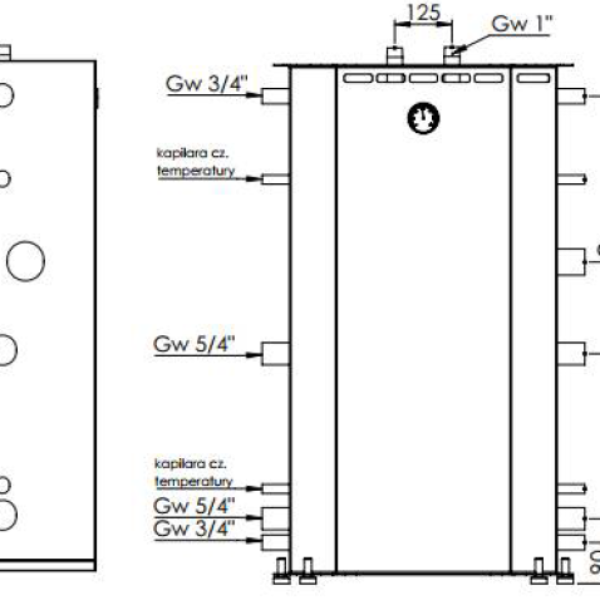

Dimensions
120 200Tank
Warranty conditions
KOŁTON sp. K., headquartered in Jabłonka, ul. Sosnowa 2, 34-480 Jabłonka, as the manufacturer of water tanks in the B, BW, BWS, KBW, and BK series, grants the purchaser a product quality warranty for a period of 36 months from the date of sale.
The purchaser is obliged to:
- Have the device installed by a qualified installer;
- Strictly follow the operating and installation instructions;
- Notify the factory service of any defect in the device within 7 days of its detection.
Failure to comply with the above obligations results in the loss of the warranty.
In the event of a defect or malfunction, the manufacturer decides on the method of its repair or the replacement of the device. The warranty covers only defects arising from causes inherent to the device itself. Warranty repairs are free of charge.
The manufacturer will fulfill warranty obligations immediately after the defect is reported to an authorized service point, but no later than 30 days from the report. A prerequisite for performing warranty service is possession of this warranty card and proof of purchase.
The manufacturer may refuse to perform warranty repairs if there is no free access to the claimed device.
The warranty applies only to products purchased and used within the territory of Poland.
The granted warranty does not exclude or limit the purchaser’s rights arising from statutory liability for physical defects.
